Processor:High-speed 32-bit microcontroller

Communication Interface:RS-485, CANopen

Max. Output Current:60 A

Power Supply Range:24 VDC – 100 VDC

Resolution:0.1 μm

Motor Compatibility:Compatible with AC/DC motors up to 10 kW

Operating Temperature:-20°C to +70°C

Dimensions:100 x 90 x 30 mm

Weight:0.4 kg

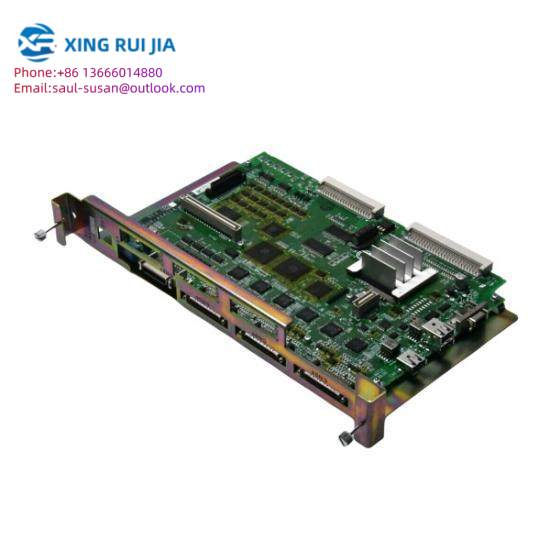

    Introducing the Yaskawa NX100 SGDR-AXA01A, the latest in advanced servo axis control technology, designed to elevate the precision and productivity of your manufacturing operations. This state-of-the-art control board leverages cutting-edge technology to deliver unparalleled control over your machinery, ensuring optimal performance and reliability in even the most demanding applications.

    Engineered for precision, the NX100 SGDR-AXA01A features a high-speed 32-bit microcontroller, enabling swift and accurate processing of complex commands. Its versatile communication interfaces, including RS-485 and CANopen, facilitate seamless integration with existing systems and devices, maximizing operational efficiency.

    With a maximum output current of 60 A, this control board is capable of driving powerful AC/DC motors up to 10 kW, providing the necessary torque and speed for high-performance applications. Its wide power supply range of 24 VDC to 100 VDC ensures compatibility with various power sources, enhancing flexibility in your manufacturing setup.

    The NX100 SGDR-AXA01A boasts an impressive resolution of 0.1 μm, ensuring the utmost precision in positioning and movement control. This level of accuracy is critical for industries requiring high-fidelity manufacturing processes, such as aerospace, semiconductor, and medical device production.

    Designed for durability, the control board operates within a temperature range of -20°C to +70°C, making it suitable for use in a wide variety of environments. Its compact size of 100 x 90 x 30 mm and lightweight construction (0.4 kg) facilitate easy installation and maintenance, reducing downtime and enhancing overall operational efficiency.
